Technical data
![](https://download.simes.it/asset/img/scheda/ce.gif)
![](https://download.simes.it/asset/img/scheda/enec.gif)
![](https://download.simes.it/asset/img/scheda/cl1.gif)
![](https://download.simes.it/asset/img/scheda/LSnsSCGs.gif)
![](/asset/images/fotometrie/fasci-small/eff_S1121W.gif)
![](/asset/images/fotometrie/diagrammi_polari/fot_S1121W.gif)
![](/asset/images/fotometrie/tablux/tablux_S1121W.gif)

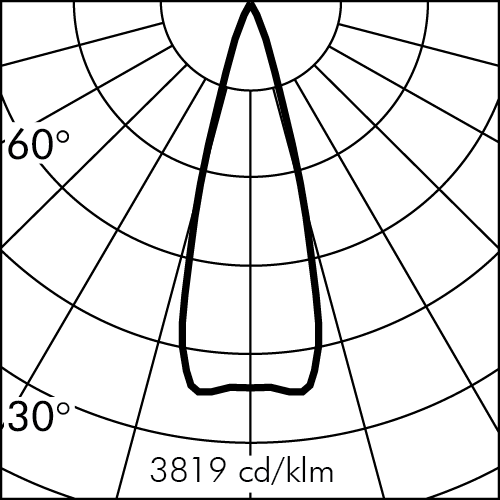

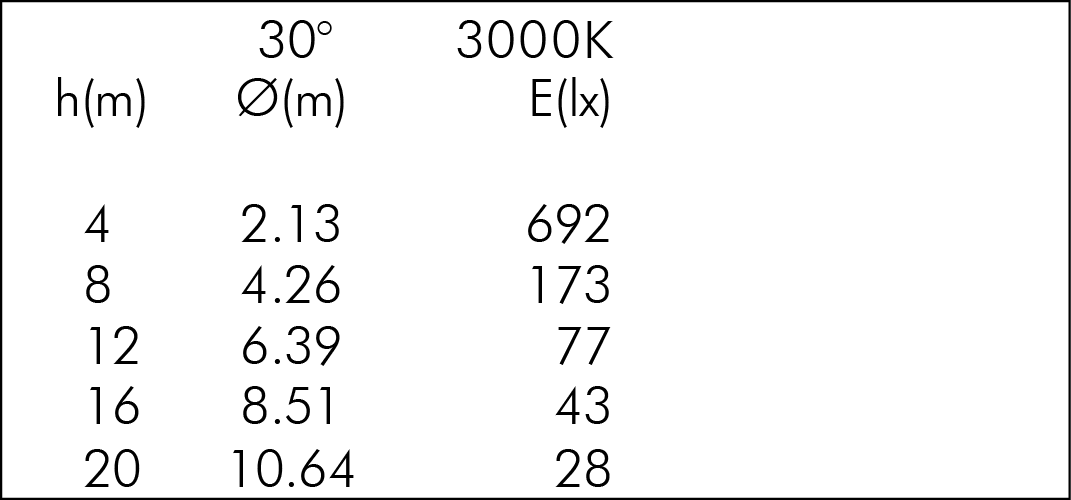

* Photometric measured using WHITE LED 3000K
PRODUCT DESCRIPTION
MINIFOCUS
Art. S.1121N
1 MODULE COB 4000K
Light Source Technical Data
Light source type: | COB |
Colour temperature: | 4000K |
Rated module luminous flux: | 4936lm |
Rated luminaire luminous flux: | 2980lm |
Rated module power: | 31.9W |
Rated luminaire power: | 36W |
Luminaire efficacy: | 83lm/W |
ULR: | 0% |
BUG: | B3 - U0 - G0 |
CIE Flux Code: | 98 100 100 100 100 |
Color Rendering Index: | CRI 80 |
Standard Deviation Color Matching: | MacAdam step 3 |
Power Supply Technical Data
Voltage (AC): | 220-240Vac |
Frequency (AC): | 50/60Hz |
Voltage (DC): | 196-250Vdc (No PUSH DIM) |
Dimmable: | DALI2; PUSH PUSH Synchronization: - Max 4 Luminaires, distance <15m; - Max 35 Luminaires, distance <300m with S.2490 accessory. |
Inrush Current: | 5A 50µsec |
Max. quantity of fixtures for Minature Circuit Breaker type B16A: | 50 |
Max. quantity of fixtures for Minature Circuit Breaker type C16A: | 85 |
Surge protection (between L-N): | 2kV |
Surge protection (between L/N-PE): | 4kV |
Temperature and life time Technical Data
LED Lifetime: | L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C |
Lifespan of the LUMINAIRE: | min. 70.000h Ta 25°C min. 50.000h Ta 40°C |
Performance ambient temperature: | Tq 25°C |
Operating ambient temperature range: | da -20°C a +50°C |
Storage temperature range: | da -20°C a +60°C |
Technical Installation Data
Electrical insulation class: | I |
Protection class IP: | IP66 |
Mechanical resistance: | IK10 |
Weight: | 4.346Kg |
Exposed windage area: | 0.042m² |
![](/asset/images/esclamativo_50.gif)
This code can be installed as Focus pole mounted only using the appropriate acessories
Pole adaptor
Poles Recessed
Poles With flange
Accessories
Recessed
With flange
