Technical data
dimensions
Anthracite Grey
Detailed technical drawing
.24
.14
PRODUCT DESCRIPTION
LUMINAIRE TYPE
Projector. IP rating IP 66

MATERIAL CHARACTERISTICS
Aluminium die cast housing in EN AB-47100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process
1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. The 5 mm thick tempered glass diffuser is fixed to the external body by a silicon resin and positioned flush with the support ring. Mechanical resistance IK 10 Maximum load capacity --

LIGHTING PERFORMANCE
The lathed anodized reflector is composed of 99,98% pure anodized aluminium with a bright polish finish (Version with LED COB), or lenses (RGBW). LOR --

INSTALLATION AND MAINTENANCE
The projector is supplied with graduated ferrules in AISI 316L stainless steel on both sides of the fitting. The screws that fix the front glass holder to the main body of the projector are also in AISI 316L stainless steel with anti loss washers . The glass diffuser and front support ring are secured to the body of the projector by a pivoting hinge assembly that when opened allows for easy access to the lamp and the reflector.

WIRING
COB Versions: Double cable entries with PG13,5 (Ø 6÷12 mm) cable glands in nickeled brass. RGBW versions: Supply 0.5m cable section type H05RNF + 2 x 1.0m BELDEN BE43906 secured by cable gland PG 13.5 (Ø 6÷12 mm) and sealed with B component epoxy resin, wired internally protected by silicon sheaths. Fast connectors IP67supplied as standard. Isolation: CLASS I . Available colours: Aluminium grey (cod.14), Anthracite grey (cod.24). Weight: 6.738 Kg Glow Wire test: 960°C
LED module included

MINIFOCUS REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): G.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

ELECTRONIC EQUIPMENT SENSITIVE TO OVERVOLTAGE.
We recommend installing surge protection devices "SPD" in the electrical system. Protection devices prevent the intensity of these phenomena’s, protecting the appliances from the risk of being damaged and extending the lifespan. Outdoor luminaires are subject to all types of permanent, temporary, or transient electrical disturbances. Such disturbances can create permanent damage or failure affecting its performance and durability. The surge protection device (supplied by SIMES) is utilized to limit the destructive effect of these phenomena. We suggest that each luminaire must be connected to one protection device at not more than 10m away. For correct coordination of the protections, a surge protection device must also be provided inside the electrical panel of the system (the selection of this device must be carried out from the electrical designer and is not supplied by SIMES).

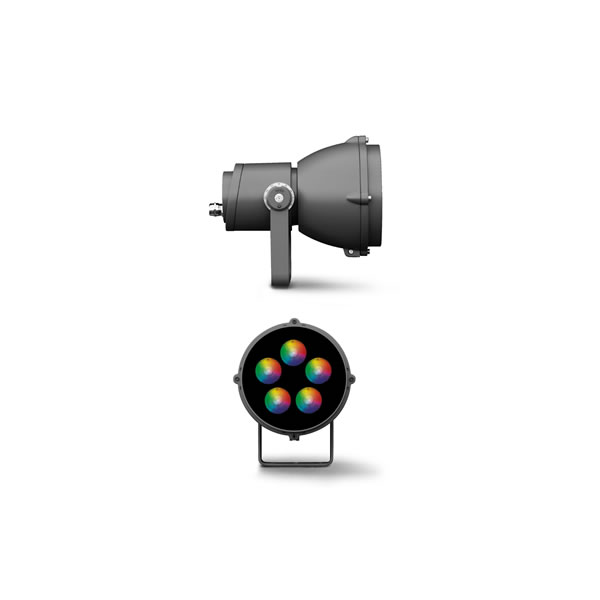

MINIFOCUS RGBW
Art. S.1125
5 MODULE LED RGBW (W=3000K)K
Light Source Technical Data
Light source type: LED
Colour temperature: RGBW (W=3000K)K
Rated module luminous flux: 1747lm
Rated luminaire luminous flux: 1196lm
Rated module power: 28.7W
Rated luminaire power: 36.8W
Luminaire efficacy: 33lm/W
ULR: 0%
BUG: B2 - U0 - G0
CIE Flux Code: 93 98 100 100 100
Power Supply Technical Data
Voltage (AC): 220-240Vac
Frequency (AC): 50/60Hz
Dimmable: DMX
Inrush Current: 5A 50µsec
Max. quantity of fixtures for Minature Circuit Breaker type B16A: 50
Max. quantity of fixtures for Minature Circuit Breaker type C16A: 85
Surge protection (between L-N): 1kV
Temperature and life time Technical Data
LED Lifetime: L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C
Lifespan of the LUMINAIRE: min. 70.000h Ta 25°C min. 50.000h Ta 40°C
Performance ambient temperature: Tq 25°C
Operating ambient temperature range: da -20°C a +50°C
Storage temperature range: da -20°C a +60°C
Technical Installation Data
Electrical insulation class: I
Protection class IP: IP66
Mechanical resistance: IK10
Weight: 6.738Kg
Exposed windage area: 0.042m²
Power cable: 0.5m - H05RNF + 2xDMX 1,0m
Documentation
specification sheet
.PDF
txt only specs sheet
.TXT
mounting instruction sheet
.PDF
family catalogue
.PDF
Conformity Declaration
CE
.PDF
MATERIC BALANCE
.PDF
UKCA
.PDF
Design tools
Professional tools only for registered users Register here
2D and 3D models
BIM
2D model
.DXF
Archicad
.LCF
3D model
.3DS
Revit
.RFA+TXT
3D model for 3D Studio Max
.MAX
SketchUp

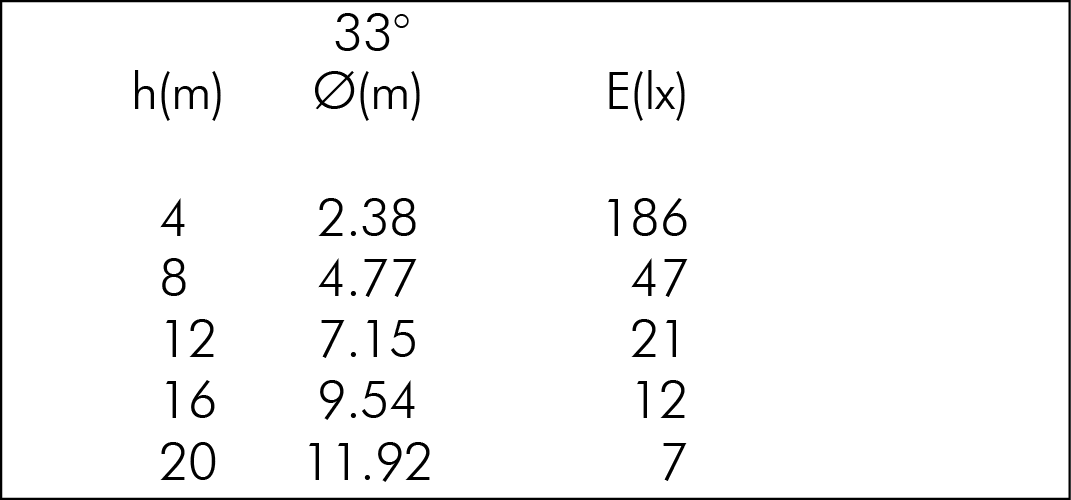

LIGHT CALCULATION

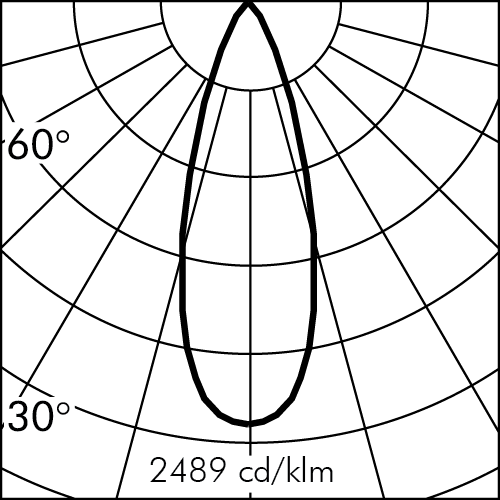

PHOTOMETRIES
