Technical data
![](https://download.simes.it/asset/img/scheda/ce.gif)
![](https://download.simes.it/asset/img/scheda/enec.gif)
![](https://download.simes.it/asset/img/scheda/cl3.gif)
![](https://download.simes.it/asset/img/scheda/LSns.gif)
![](/asset/images/fotometrie/fasci-small/eff_S1751W.gif)
![](/asset/images/fotometrie/diagrammi_polari/fot_S1751W.gif)
![](/asset/images/fotometrie/tablux/tablux_S1751W.gif)

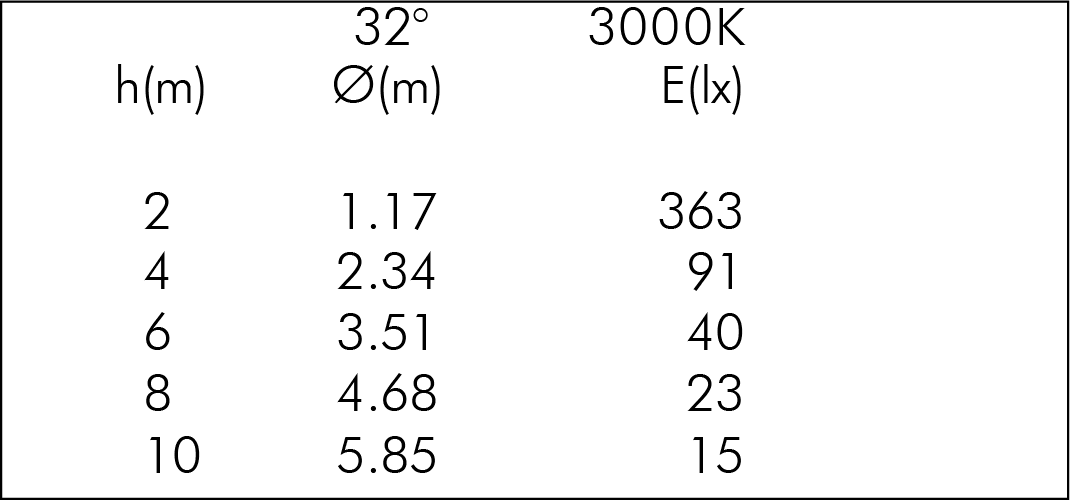

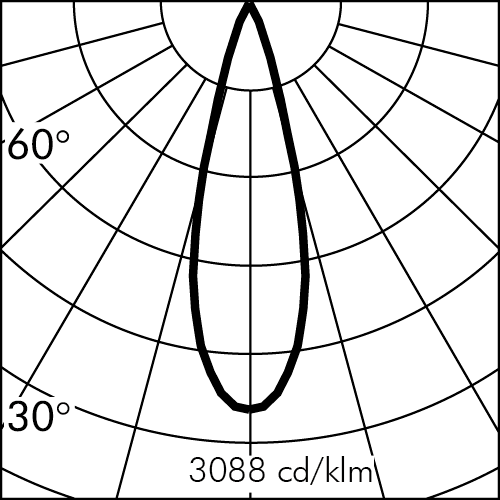

* Photometric measured using WHITE LED 3000K
PRODUCT DESCRIPTION

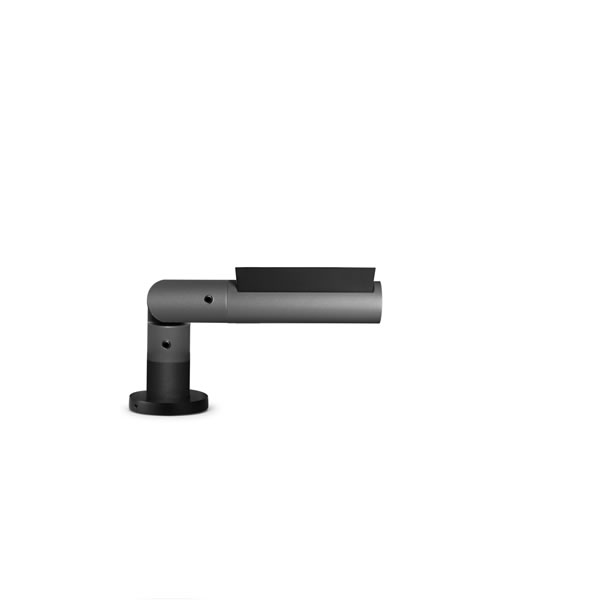

PIVOT 4 LED 850mA
Art. S.1751H
4 MODULE LED 2700K
Light Source Technical Data
Light source type: | LED |
Colour temperature: | 2700K |
Rated module luminous flux: | 830lm |
Rated luminaire luminous flux: | 446lm |
Rated module power: | 9.4W |
Rated luminaire power: | 10.3W |
Luminaire efficacy: | 43lm/W |
ULR: | 0% |
Color Rendering Index: | CRI 90 |
Standard Deviation Color Matching: | MacAdam step 3 |
Power Supply Technical Data
Current : See the SIMES power supply accessories list on the following pages NB: Use 1 Power Supply for each Luminaires | Max. 850mA Vfmin=10Vdc Vfmax=14Vdc |
Temperature and life time Technical Data
LED Lifetime: | L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C |
Lifespan of the LUMINAIRE: | min. 70.000h Ta 25°C min. 50.000h Ta 40°C |
Performance ambient temperature: | Tq 25°C |
Operating ambient temperature range: | da -20°C a +50°C |
Storage temperature range: | da -20°C a +60°C |
Technical Installation Data
Electrical insulation class: | III |
Protection class IP: | IP66 |
Mechanical resistance: | IK07 |
Weight: | 1.2939Kg |
Exposed windage area: | 0.009m² |
Power cable: | 5m - FLAT |
![](/asset/images/esclamativo_50.gif)
This code can be installed as Pivot pole mounted only using the appropriate acessories
Pole adaptor
Poles Recessed
Poles With flange
Accessories
Current not dimmable
Current dali dimmable
Current phase-cut dimmable
Current 1-10V dimmable
Recessed
With flange
