Pivot
Rated luminaire luminous flux:
446 lm - 1487 lm
X
Colour temperature:
Power supply:
Tipo Control type:
Standard beams:
Number of products found: 16
PIVOT 4 LED 850mA
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1751N | ![]() |
31° | 11.5W | 493lm | LED 4000K CRI 80 | Max. 850mA | -- | .24 |
S.1751W | ![]() |
31° | 11.5W | 470lm | LED 3000K CRI 90 | Max. 850mA | -- | .24 |
S.1751H | ![]() |
31° | 11.5W | 446lm | LED 2700K CRI 90 | Max. 850mA | -- | .24 |
Beam lenses available on request with no surcharge: 10° (S.1752), 60° (S.1753), 60°x10° (S.1754)
Colours on request with surchage: .01.07.09.14.20
PIVOT 7 LED 850mA
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1761N | ![]() |
31° | 18.6W | 837lm | LED 4000K CRI 80 | Max. 850mA | -- | .24 |
S.1761W | ![]() |
31° | 18.6W | 798lm | LED 3000K CRI 90 | Max. 850mA | -- | .24 |
S.1761H | ![]() |
31° | 18.6W | 758lm | LED 2700K CRI 90 | Max. 850mA | -- | .24 |
Beam lenses available on request with no surcharge: 10° (S.1762), 60° (S.1763), 60°x10° (S.1764)
Colours on request with surchage: .01.07.09.14.20
PIVOT 12 LED 850mA
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1771N | ![]() |
31° | 30.8W | 1487lm | LED 4000K CRI 80 | Max. 850mA | -- | .24 |
S.1771W | ![]() |
31° | 30.8W | 1417lm | LED 3000K CRI 90 | Max. 850mA | -- | .24 |
S.1771H | ![]() |
31° | 30.8W | 1346lm | LED 2700K CRI 90 | Max. 850mA | -- | .24 |
Beam lenses available on request with no surcharge: 10° (S.1772), 60° (S.1773), 60°x10° (S.1774)
Colours on request with surchage: .01.07.09.14.20
PIVOT TUNABLE WHITE 24V
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1777T | ![]() |
47°x97° | 17.1W | 597lm | LED TUNABLE WHITE 2700K-4000K CRI 90 | 24Vdc | PWM | .24 |
Colours on request with surchage: .01.07.09.14.20

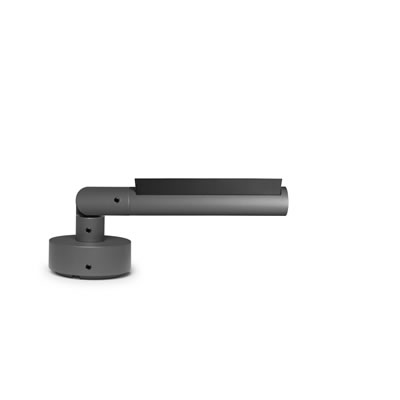

PIVOT 7 LED 230V
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1766N | ![]() |
31° | 24.8W | 837lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
S.1766W | ![]() |
31° | 24.8W | 798lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
S.1766H | ![]() |
31° | 24.8W | 758lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
Beam lenses available on request with no surcharge: 10° (S.1762), 60° (S.1763), 60°x10° (S.1764)
Colours on request with surchage: .01.07.09.14.20

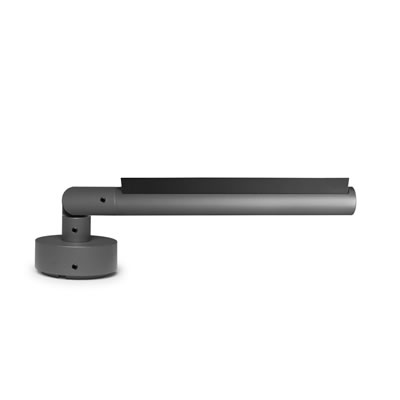

PIVOT 12 LED 230V
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1776N | ![]() |
31° | 33.6W | 1487lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
S.1776W | ![]() |
31° | 33.6W | 1417lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
S.1776H | ![]() |
31° | 33.6W | 1346lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
Beam lenses available on request with no surcharge: 10° (S.1772), 60° (S.1773), 60°x10° (S.1774)
Colours on request with surchage: .01.07.09.14.20
The range
PIVOT is available in different versions and applications.
