Technical data

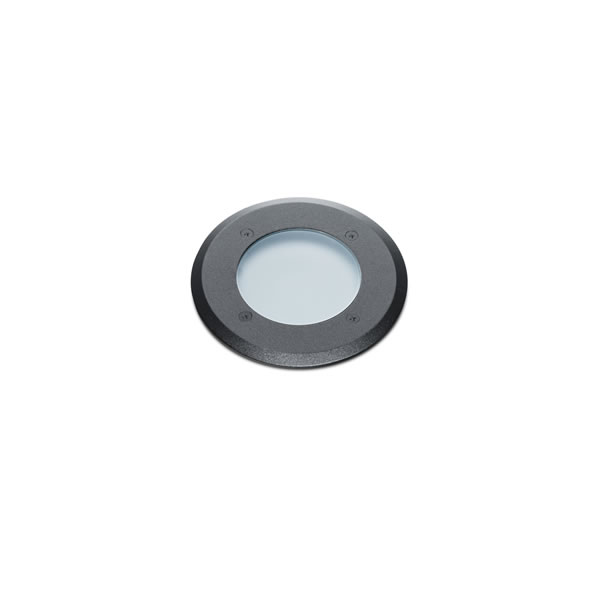

MINIZIP ROUND COMFORT
Art. S.7805N
1 MODULE LED 4000K
Light Source Technical Data
Light source type: | LED |
Colour temperature: | 4000K |
Rated module luminous flux: | 238lm |
Rated luminaire luminous flux: | 38lm |
Rated module power: | 1.5W |
Rated luminaire power: | 3W |
Luminaire efficacy: | 13lm/W |
Color Rendering Index: | CRI 80 |
Standard Deviation Color Matching: | MacAdam step 3 |
Power Supply Technical Data
Voltage (AC): | 220-240Vac |
Frequency (AC): | 50/60Hz |
Voltage (DC): | 176-264Vdc |
Dimmable: | NOT DIMMABLE (ON-OFF) |
Inrush Current: | 20A 170µsec |
Max. quantity of fixtures for Minature Circuit Breaker type B16A: | 50 |
Max. quantity of fixtures for Minature Circuit Breaker type C16A: | 85 |
Surge protection (between L-N): | 1÷2kV |
Surge protection (between L/N-PE): | 2kV |
Temperature and life time Technical Data
LED Lifetime: | L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C |
Lifespan of the LUMINAIRE: | min. 70.000h Ta 25°C min. 50.000h Ta 40°C |
Performance ambient temperature: | Tq 25°C |
Operating ambient temperature range: | da -20°C a +50°C |
Storage temperature range: | da -20°C a +60°C |
Technical Installation Data
Electrical insulation class: | I |
Protection class IP: | IP65 IP67 |
Mechanical resistance: | IK09 |
Glass surface temperature: | 37°C |
Weight: | 1.4616Kg |
Maximum load capacity: | 510Kg |
Power cable: | 0.5m - H07RN-F |
