Technical data

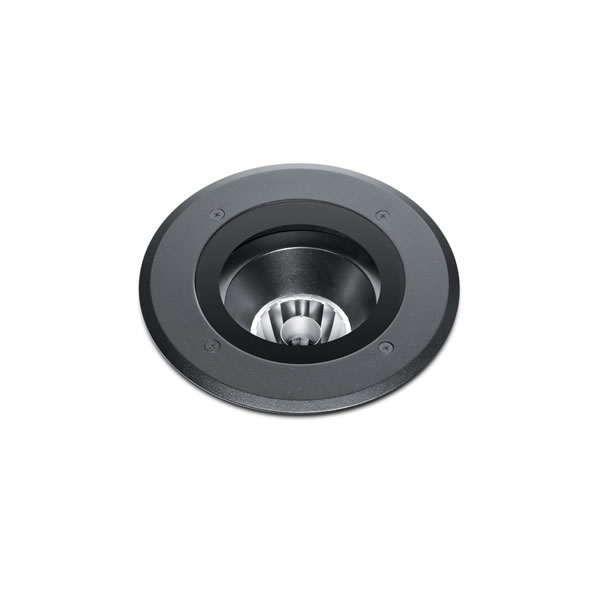

ZIP ROUND COMFORT
Art. S.7893N
1 MODULE COB 4000K
Light Source Technical Data
Light source type: | COB |
Colour temperature: | 4000K |
Rated module luminous flux: | 1734lm |
Rated luminaire luminous flux: | 1027lm |
Rated module power: | 11.5W |
Rated luminaire power: | 15.2W |
Luminaire efficacy: | 68lm/W |
Color Rendering Index: | CRI 80 |
Standard Deviation Color Matching: | MacAdam step 3 |
Power Supply Technical Data
Voltage (AC): | 220-240Vac |
Frequency (AC): | 50/60Hz |
Voltage (DC): | 198-276Vdc |
Dimmable: | NOT DIMMABLE (ON-OFF) (DALI2; PUSH available with surcharge) |
Inrush Current: | 5A 50µsec |
Max. quantity of fixtures for Minature Circuit Breaker type B16A: | 50 |
Max. quantity of fixtures for Minature Circuit Breaker type C16A: | 85 |
Surge protection (between L-N): | 2kV |
Surge protection (between L/N-PE): | 4kV |
Temperature and life time Technical Data
LED Lifetime: | L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C |
Lifespan of the LUMINAIRE: | min. 70.000h Ta 25°C min. 50.000h Ta 40°C |
Performance ambient temperature: | Tq 25°C |
Operating ambient temperature range: | da -20°C a +50°C |
Storage temperature range: | da -20°C a +60°C |
Technical Installation Data
Electrical insulation class: | I |
Protection class IP: | IP65 IP67 |
Mechanical resistance: | IK09 |
Glass surface temperature: | 35°C |
Weight: | 3.7819Kg |
Maximum load capacity: | 1020Kg |
Power cable: | 0.2m - H07RN-F |
