Catch
Rated luminaire luminous flux (lm):
492 lm - 3057 lm
X
Colour temperature:
Tipo Control type:
Standard beams:
Standard colours:
Number of products found: 18

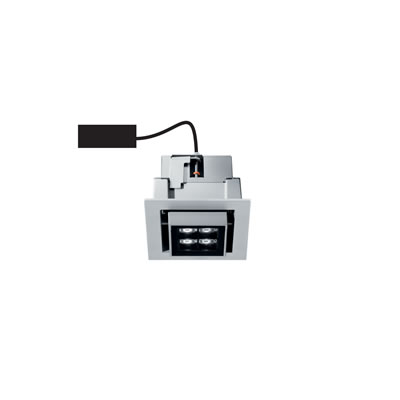

CATCH SQUARE 4LED
Catch square 4LED aluminium front ring adjustable optic
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.7400N |  |
34° | 7.3W | 601lm | LED 4000K CRI 90 | 220-240Vac | DALI2; PUSH | .01.14 |
| S.7400W | |
34° | 7.3W | 560lm | LED 3000K CRI 90 | 220-240Vac | DALI2; PUSH | .01.14 |
| S.7400H | |
34° | 7.3W | 531lm | LED 2700K CRI 90 | 220-240Vac | DALI2; PUSH | .01.14 |
| S.7401N |  |
65° | 7.3W | 557lm | LED 4000K CRI 90 | 220-240Vac | DALI2; PUSH | .01.14 |
| S.7401W | |
65° | 7.3W | 519lm | LED 3000K CRI 90 | 220-240Vac | DALI2; PUSH | .01.14 |
| S.7401H | |
65° | 7.3W | 492lm | LED 2700K CRI 90 | 220-240Vac | DALI2; PUSH | .01.14 |
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24

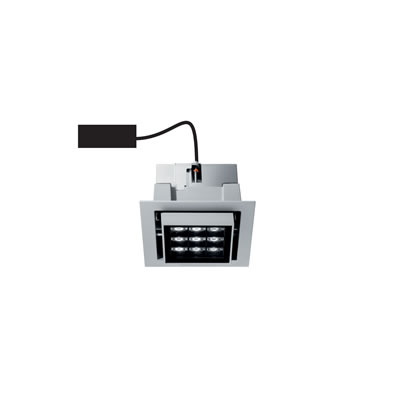

CATCH SQUARE 9LED
Catch square 9LED aluminium front ring adjustable optic
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.7420N |  |
34° | 14.7W | 1285lm | LED 4000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7420W | |
34° | 14.7W | 1198lm | LED 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7420H | |
34° | 14.7W | 1136lm | LED 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7421N |  |
63° | 14.7W | 1020lm | LED 4000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7421W | |
63° | 14.7W | 951lm | LED 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7421H | |
63° | 14.7W | 902lm | LED 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24

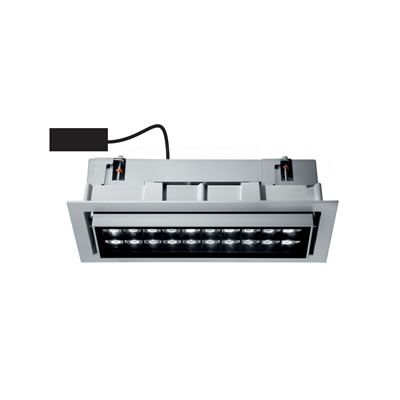

CATCH RECTANGULAR 20LED
Catch rectangulaire aluminium front ring adjustable optic
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.7460N |  |
34° | 34W | 3057lm | LED 4000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7460W | |
34° | 34W | 2851lm | LED 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7460H | |
34° | 34W | 2704lm | LED 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7461N |  |
63° | 34W | 2433lm | LED 4000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7461W | |
63° | 34W | 2269lm | LED 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
| S.7461H | |
63° | 34W | 2152lm | LED 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14 |
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24
