Pointer

Rated luminaire luminous flux (lm):

553 lm - 19914 lm X

Colour temperature:

Power supply:

Tipo Control type:

Standard beams:

Number of products found: 45

Reset


dimensions

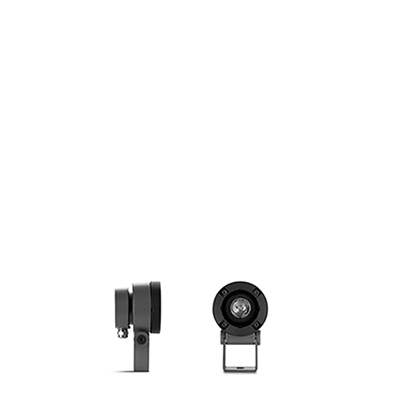

NANOPOINTER 1LED MONOCHROME

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2780N	5°	--	--	LED 4000K CRI 80	24Vdc	PWM	.24
S.2780W	5°	--	--	LED 3000K CRI 80	24Vdc	PWM	.24
S.2780H	5°	--	--	LED 2700K CRI 80	24Vdc	PWM	.24
S.2781N	10°	--	--	LED 4000K CRI 80	24Vdc	PWM	.24
S.2781W	10°	--	--	LED 3000K CRI 80	24Vdc	PWM	.24
S.2781H	10°	--	--	LED 2700K CRI 80	24Vdc	PWM	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

MICROPOINTER 3LEDs MONOCHROME

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2760N	5°	8.6W	630lm	LED 4000K CRI 80	220-240Vac	DALI; DALI2; PUSH	.24
S.2760W	5°	8.6W	608lm	LED 3000K CRI 80	220-240Vac	DALI; DALI2; PUSH	.24
S.2760H	5°	8.6W	553lm	LED 2700K CRI 80	220-240Vac	DALI; DALI2; PUSH	.24
S.2761N	10°	8.5W	896lm	LED 4000K CRI 80	220-240Vac	DALI; DALI2; PUSH	.24
S.2761W	10°	8.5W	840lm	LED 3000K CRI 80	220-240Vac	DALI; DALI2; PUSH	.24
S.2761H	10°	8.5W	784lm	LED 2700K CRI 80	220-240Vac	DALI; DALI2; PUSH	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

MINIPOINTER 7LEDs MONOCHROME

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2700N	5°	26.4W	1727lm	LED 4000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2700W	5°	26.4W	1515lm	LED 3000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2700H	5°	26.4W	1413lm	LED 2700K CRI 90	220-240Vac	DALI2; PUSH	.24
S.2701N	9°	25.8W	2524lm	LED 4000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2701W	9°	25.8W	2366lm	LED 3000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2701H	9°	25.8W	2208lm	LED 2700K CRI 80	220-240Vac	DALI2; PUSH	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

MINIPOINTER 6LEDs TUNABLE WHITE

Code	Beam	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2701T		9°	9.6W	--	LED TUNABLE WHITE 2200K-4000 CRI 80	Max. 1050mA	--	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

MINIPOINTER 7LEDs RGBW

Code	Beam	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2703J		6°	21.7W	1177lm	LED RGBW W=3000 CRI 80	24Vdc	--	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

MINIPOINTER DIGITAL BEAM

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2705N	10°-49°	16.4W	954lm	LED 4000K CRI 90	48Vdc	--	.24
S.2705W	10°-49°	16.4W	909lm	LED 3000K CRI 90	48Vdc	--	.24
S.2705H	10°-49°	16.4W	864lm	LED 2700K CRI 90	48Vdc	--	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

POINTER SLIM 13LEDs MONOCHROME

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2728N	4°	33.5W	2964lm	LED 4000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2728W	4°	33.5W	2600lm	LED 3000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2728H	4°	33.5W	2600lm	LED 2700K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2729N	10°	33.4W	3710lm	LED 4000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2729W	10°	33.4W	3478lm	LED 3000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2729H	10°	33.4W	3246lm	LED 2700K CRI 80	220-240Vac	DALI2; PUSH	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

POINTER 19LEDs MONOCHROME

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2720N	4°	66.3W	5215lm	LED 4000K CRI 80	220-240Vac	DALI; DALI 2	.24
S.2720W	4°	66.3W	4575lm	LED 3000K CRI 80	220-240Vac	DALI; DALI 2	.24
S.2720H	4°	66.3W	4575lm	LED 2700K CRI 80	220-240Vac	DALI; DALI 2	.24
S.2721N	10°	65.5W	6595lm	LED 4000K CRI 80	220-240Vac	DALI; DALI 2	.24
S.2721W	10°	65.5W	6183lm	LED 3000K CRI 80	220-240Vac	DALI; DALI 2	.24
S.2721H	10°	65.5W	5771lm	LED 2700K CRI 80	220-240Vac	DALI; DALI 2	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

POINTER 18LEDs TUNABLE WHITE

Code	Beam	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2721T		9°	28.5W	--	LED TUNABLE WHITE 2200K-4000 CRI 80	220-240Vac	DALI DT8; PUSH	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

POINTER 16LEDs RGBW

Code	Beam	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2723J		6°	36.2W	2145lm	LED RGBW W=3000 CRI 80	220-240Vac	DMX / RDM; PUSH	.24

Colours on request with surchage: .01.07.09.14.20


dimensions

MEGAPOINTER 55LEDs MONOCHROME

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.2740N	4°	118.7W	10193lm	LED 4000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2740W	4°	118.7W	8942lm	LED 3000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2740H	4°	118.7W	8942lm	LED 2700K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2741N	9°	151.8W	19914lm	LED 4000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2741W	9°	151.8W	18669lm	LED 3000K CRI 80	220-240Vac	DALI2; PUSH	.24
S.2741H	9°	151.8W	17424lm	LED 2700K CRI 80	220-240Vac	DALI2; PUSH	.24
