Loft round
Rated luminaire luminous flux (lm):
70 lm - 1550 lm
X
Colour temperature:
Tipo Control type:
Standard beams:
Standard colours:
Number of products found: 15

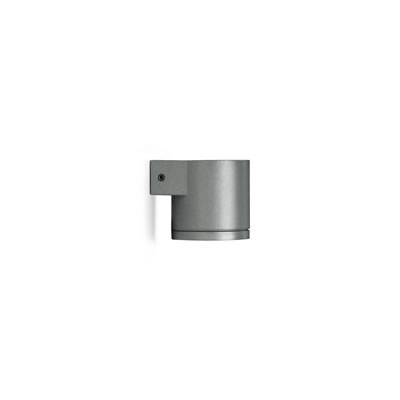

MICROLOFT ROUND WALL
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.6622N |  |
7°x28° | 3.5W | 80lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6622W | |
7°x28° | 3.5W | 74lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6622H | |
7°x28° | 3.5W | 70lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
Beam lenses available on request with no surcharge: 9°, 22°, 38°
Colours on request with surchage: .07.09.20

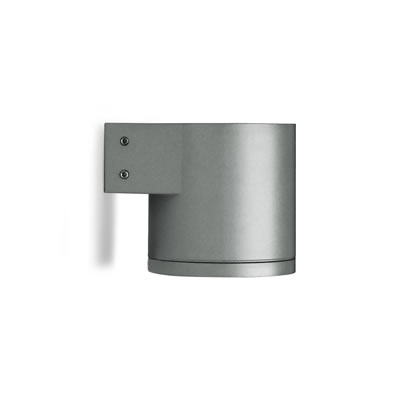

MINILOFT ROUND WALL
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.6628N |  |
31° | 7.5W | 512lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6628W | |
31° | 7.5W | 465lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6628H | |
31° | 7.5W | 408lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6658N |  |
12° | 7.5W | 577lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6658W | |
12° | 7.5W | 509lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6658H | |
12° | 7.5W | 483lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
Beam lenses available on request with no surcharge: 63°, 10x44°
Colours on request with surchage: .07.09.20

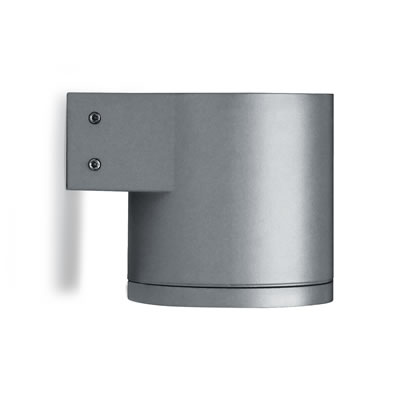

LOFT ROUND WALL
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.6680N |  |
31° | 21.5W | 1348lm | LED 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6680W | |
31° | 21.5W | 1269lm | LED 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6680H | |
31° | 21.5W | 1274lm | LED 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6689N |  |
12° | 21.5W | 1550lm | LED 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6689W | |
12° | 21.5W | 1488lm | LED 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6689H | |
12° | 21.5W | 1480lm | LED 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
Beam lenses available on request with no surcharge: 63°, 10x44°
Colours on request with surchage: .07.09.20
The range
LOFT ROUND is available in different versions and applications.
